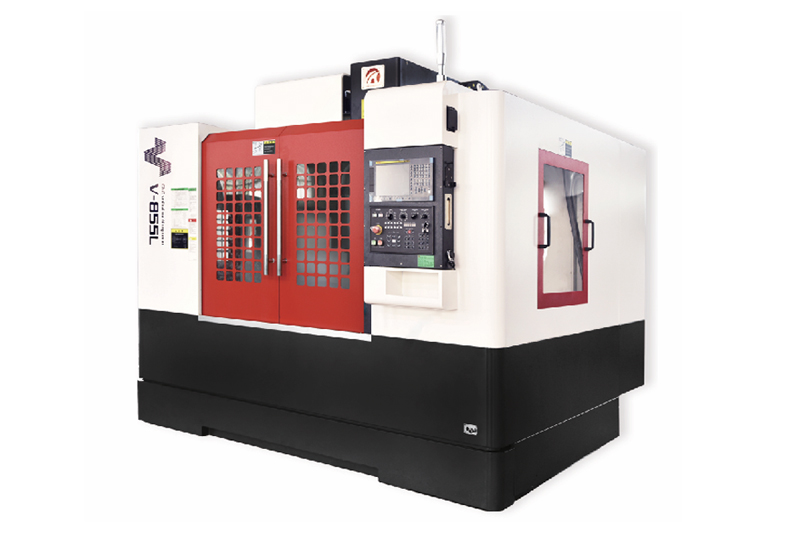

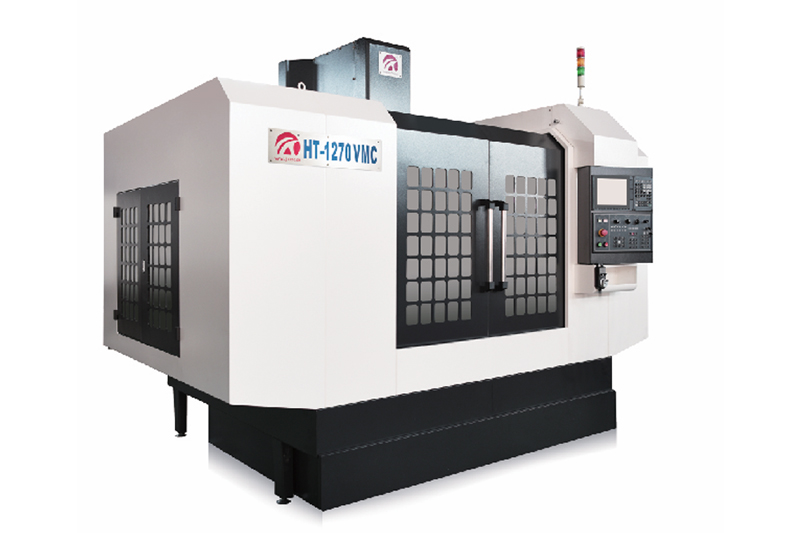

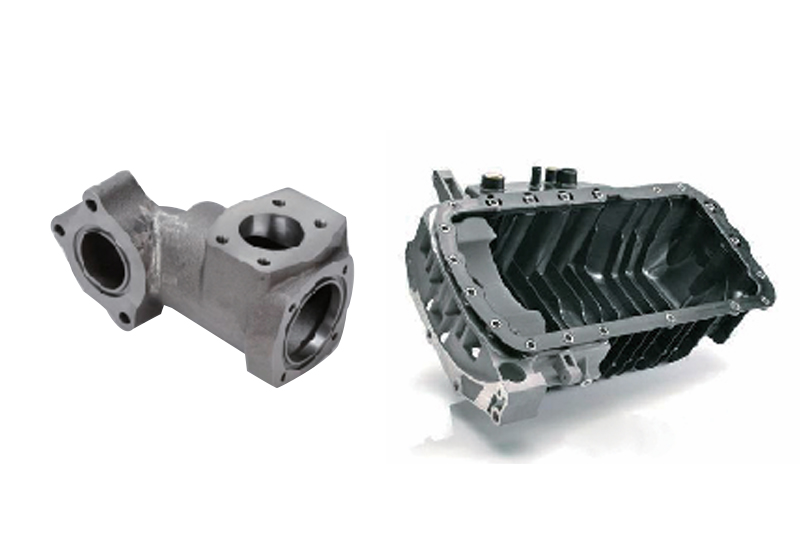

Huate Vertical Machining Center Three-line/Two-line

HUATE-855/1160/850/1060/1270/1370/1580/1890

Product Features

一：High torque

1. The spindle motor incorporates a Fanuc wide-area motor, providing significantly highter torque compared to similar models.

2. The short nose type spindle head enables close proximity to the workpiece during machining ,making it well-suited for heavy-duty cutting.

3. The specially designed base and column reinforcements possess anti-torsion and shock-absorbing properties, ensuring excellent torque resistance

二：High rigidity

The casting structure features high-grade cast iron, providing exceptional stability and robust earthquake resistance. It incorporates an arch -bridge type high -rigidity structure for maximum strength and rigidity.

The column's bending and torsion resistance is enhanced 1.7 times, ensuring stable processing throughout the entire Y-axis stroke,including the uppermost end.

By combining nitrided and ultra-low temperature (-190 ° C) treated spindles with high-precision and high-rigidity spindle bearings ,our product achieves optimal long-term performance .

三：High Precision

The spindle bearing is equipped with a circulating oil cooling system, incorporating an oil pipe-sheath cooling design to prevent thermal displacement issues.

The flange part of the spindle motor adopts oil pipe sheath cooling.

The spindle undergoes a special nitriding process to ensure long-term wear resistance even under prolonged use.

The X/Y/Z-axis lead screw and motor implement a direct transmission mechanism with a reducer.

Consult Now

Product parameters

		HT-855	HT-1160	HT-850	HT-1060	HT-1270	HT-1370	HT-1580	HT-1890
Machining range
X-axis travel	mm	800	1100	800	1000	1200	1300	1500	1800
Y-axis travel	mm	550	600	500	600	700	700	800	900
Z-axis travel	mm	550	600	500	600	650	700	700	720
Spindle Center to Columnar Distance	mm	595	670	570	655	765	740	810	960
Spindle End to Worktable Distance	mm	120-670	120-72	100-650	100-700	120-770	110-810	150-850	180-900
Worktable
Table Size	mm	1000*550	1200*600	1000*500	1250*600	1400*700	1400*700	1700*800	2000*900
Table Load Capacity	kg	450	600	450	600	800	1200	1600	1800
T-Slot (Width*Spacing)	mm	18*90	18*100	18*90	18*110	18*110	18*110	22*135	22*165
Spindle
Spindle Drive Method		Belt	Belt	Belt	Belt	Belt	Belt	Belt	Belt
Spindle Speed	rpm	8000	8000	8000	8000	6000	6000	6000	6000
Spindle Power	kw	7.5-11	11-15	7.5-11	11-15	15-18.5	15-18.5	15-18.5	15-18.5
SpindleTorque	N.m	35.8	55.5	35.8	52.5	143.3	143.3	143.3	143.3
Spindle Taper/Pull Stud		BT40	BT40	BT40	BT40	BT40/BT50	BT50	BT50	BT50
Drive Feed
Rapid Traverse X/Y/Z	m/min	48/48/48	48/48/48	24/24/18	24/24/18	24/24/15	24/24/24	20/20/15	20/20/15
Maximum Cutting Speed X/Y/Z	m/min	12	12	12	12	10	10	10	10
Minimum Resolution	mm	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Accuracy
Positioning AccuracyX/Y/Z	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeatability X/Y/Z	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Others
Guide Rail Specification	mm	35/45/45	45/45/45	35/45/Z axis hard rail	45/45/Z axis hard rail	45/45/Z axis hard rail	45/45/Z axis hard rail	45/45/Z axis hard rail	55/45/Z axis hard rail
Screw Rod Specification	mm	40/40/40	40/40/40	40/40/40	40/40/40	40/40/40	45/45/45	50/50/50	55/55/55
Servo Motor Power X/Y/Z	kw	1.8/1.8/3	2.5/2.5/3	1.8/1.8/3	2.5/2.5/2.5	3/3/3	3/3/3	3/3/3	3/3/3
Power Requirement	kw	18	18	18	18	30	30	35	40
Machine Dimensions	mm	2300 2400 2500	3100 2600 2680	2500 2500 2350	3000 2650 2700	3150 3100 2700	3200 2540 2600	4300 3160 2700	4900 3900 3500
Approximate Machine Weight	t	6	8	6	8	9	11	12	14

*Note: Our company's products are constantly improving. If there are any changes to the above information, no further notice will be given, and the technical documents shall prevail.
